NVR516-64E-R-IM
Key Features
• Supports Ultra 265, H.265, and H.264 video compression formats
• Supports 64-channel IP video input
• Supports recording resolutions up to 32 megapixels
• 16 SATA interfaces supporting HDDs up to 24 TB each
• Dual HDMI and dual VGA outputs with independent display configurations
• HDMI1 supports up to 8K (7680 × 4320) at 30 Hz resolution
• Supports RAID 0, 1, 5, 6, 10, 50, and 60 storage configurations
• Supports hot-swappable hard drives for convenient maintenance
• Optional redundant power supply for enhanced system reliability
• Supports one miniSAS interface and one eSATA interface
• Supports 12 V power output
• ANR technology improves recording reliability during network disconnections
• Supports N+1 hot spare for improved system availability
• Advanced video analytics including face detection, vehicle detection, people counting, and video metadata
• Supports Smart Intrusion Prevention (SIP) and Ultra Motion Detection (UMD)
• Supports AcuSearch and AcuTrack with compatible Uniview cameras
• Supports up to 768 Mbps incoming and outgoing bandwidth with 8K mode disabled
• Two RJ45 Gigabit Ethernet interfaces with load balancing and network fault tolerance
• Supports cloud upgrades
• 3U rack-mountable design for professional surveillance installations
Product Description

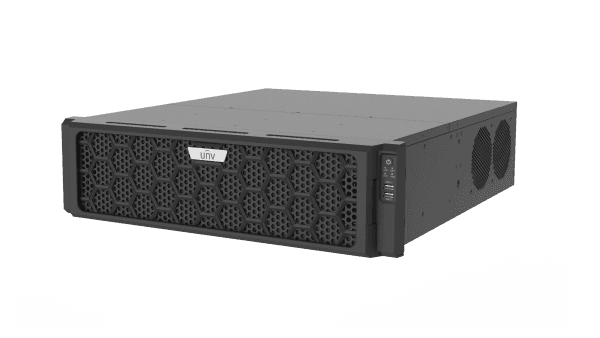

The Uniview NVR516-64E-R-IM is a 64-channel intelligent network video recorder designed for enterprise-level surveillance and advanced security management. Featuring a 16-hard-disk storage system, it supports Ultra 265, H.265, and H.264 video compression, with recording resolutions up to 32 megapixels. The recorder offers dual HDMI and VGA outputs, including 8K HDMI output, configurable RAID storage, hot-swappable hard drives, and optional redundant power supplies. Advanced features include intelligent video analytics, AcuSearch, AcuTrack, ANR technology, and N+1 hot spare support for reliable and efficient video surveillance.
