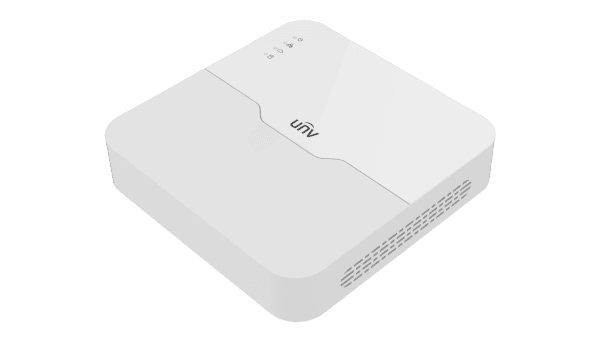

NVR301-04LS3-P4

Key Features

• Supports 4-channel IP video input
• Supports Ultra 265, H.265, and H.264 video compression formats
• Four independent PoE network interfaces for plug-and-play camera installation
• Compatible with ONVIF Profiles S, G, and T and RTSP protocols
• Supports one HDMI output and one VGA output
• HDMI output supports resolutions up to 4K (3840 × 2160) at 30 Hz
• Supports simultaneous HDMI and VGA video output
• Supports recording resolutions up to 8 megapixels
• One SATA hard disk interface supporting up to 10 TB
• Supports up to 64 Mbps incoming bandwidth
• Supports up to 48 Mbps outgoing bandwidth
• Supports local synchronous playback of up to 4 channels
• Supports face detection, Smart Intrusion Prevention (SIP), and Ultra Motion Detection (UMD) through compatible cameras
• Supports ANR-compatible surveillance configurations where supported
• Supports cloud-based firmware upgrades
• Supports IEEE 802.3af and IEEE 802.3at PoE standards
• Compact design for residential, retail, and small-business surveillance installations

Product Description

The Uniview NVR301-04LS3-P4 is a compact 4-channel network video recorder from the NVR301-LS3-P Series, designed for efficient IP video surveillance with integrated Power over Ethernet (PoE) connectivity. It supports Ultra 265, H.265, and H.264 video compression to help reduce storage and bandwidth requirements while maintaining image quality. Featuring four independent PoE network interfaces, ONVIF compatibility, and RTSP protocol support, it simplifies IP camera installation and integration. The recorder supports recording resolutions up to 8 megapixels, HDMI output up to 4K resolution, simultaneous HDMI and VGA output, and one SATA hard disk supporting up to 10 TB. With intelligent video functions, local playback, and cloud upgrade support, it is suitable for residential, retail, and small-business surveillance installations.
