IPC3532LB-ADZK-H
1 / 4
easy series

IPC3532LB-ADZK-H

Key Features

2MP Full HD resolution with a 1/2.8-inch CMOS sensor
Supports 1920 × 1080 and 1280 × 720 video at up to 30 fps
Ultra 265, H.265, H.264, and MJPEG video compression
120 dB true WDR for improved image clarity in high-contrast lighting
2.8–12mm variable-focal-length lens with an F1.6 aperture
Adjustable horizontal field of view from 103.6° to 33.4°
Smart IR night vision with illumination up to 40 metres
Day/night functionality with an automatic IR-cut filter
Human-body-based cross-line detection and intrusion detection
Motion detection, ultra motion detection, tampering alarm, and audio detection
Built-in microphone for audio capture
Supports MicroSD cards up to 512GB and NAS storage
Dual video streams with ROI and privacy mask support
2D/3D digital noise reduction, BLC, HLC, and digital defog
Supports 9:16 corridor mode for vertically oriented surveillance
DC 12V and PoE (IEEE 802.3af) power options
IP67-rated dust and water protection
IK10-rated vandal-resistant housing
3-axis adjustment for flexible installation
Supports ONVIF Profiles S, G, and T, API, and SDK integration
Maximum power consumption of 8.0W
Operating temperature from -30°C to 60°C
6KV surge protection

Product Description

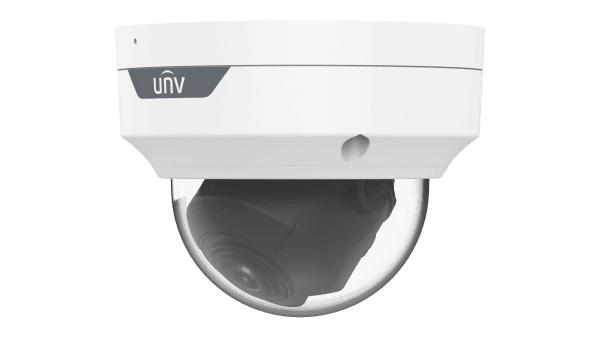

The Uniview IPC3532LB-ADZK-H is a 2MP variable-focal-length IR dome network camera designed for reliable indoor and outdoor surveillance. Featuring a 1/2.8-inch CMOS sensor, it captures Full HD 1080P video at up to 30 fps and supports Ultra 265, H.265, H.264, and MJPEG video compression. Its 120 dB true WDR technology delivers clear images in challenging lighting conditions, while Smart IR provides night vision up to 40 metres. The 2.8–12mm variable-focal-length lens offers an adjustable field of view, and human-body-based intrusion and cross-line detection enhance security monitoring. With a built-in microphone, MicroSD storage up to 512GB, DC 12V and PoE support, IP67-rated dust and water protection, IK10-rated vandal resistance, and 3-axis adjustment, this durable dome camera is suitable for offices, shops, warehouses, commercial buildings, and other security installations.
